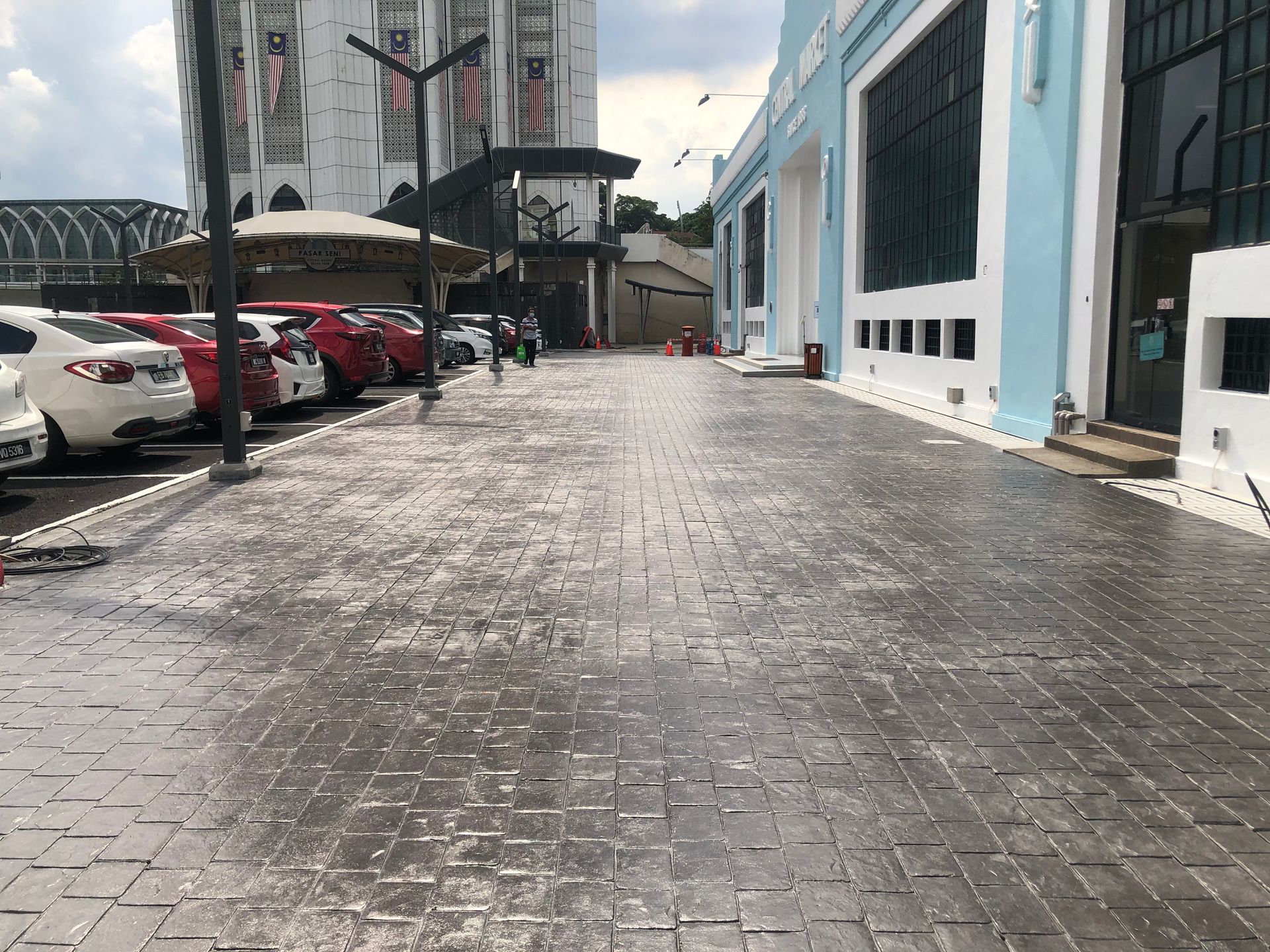

STAMPED CONCRETE

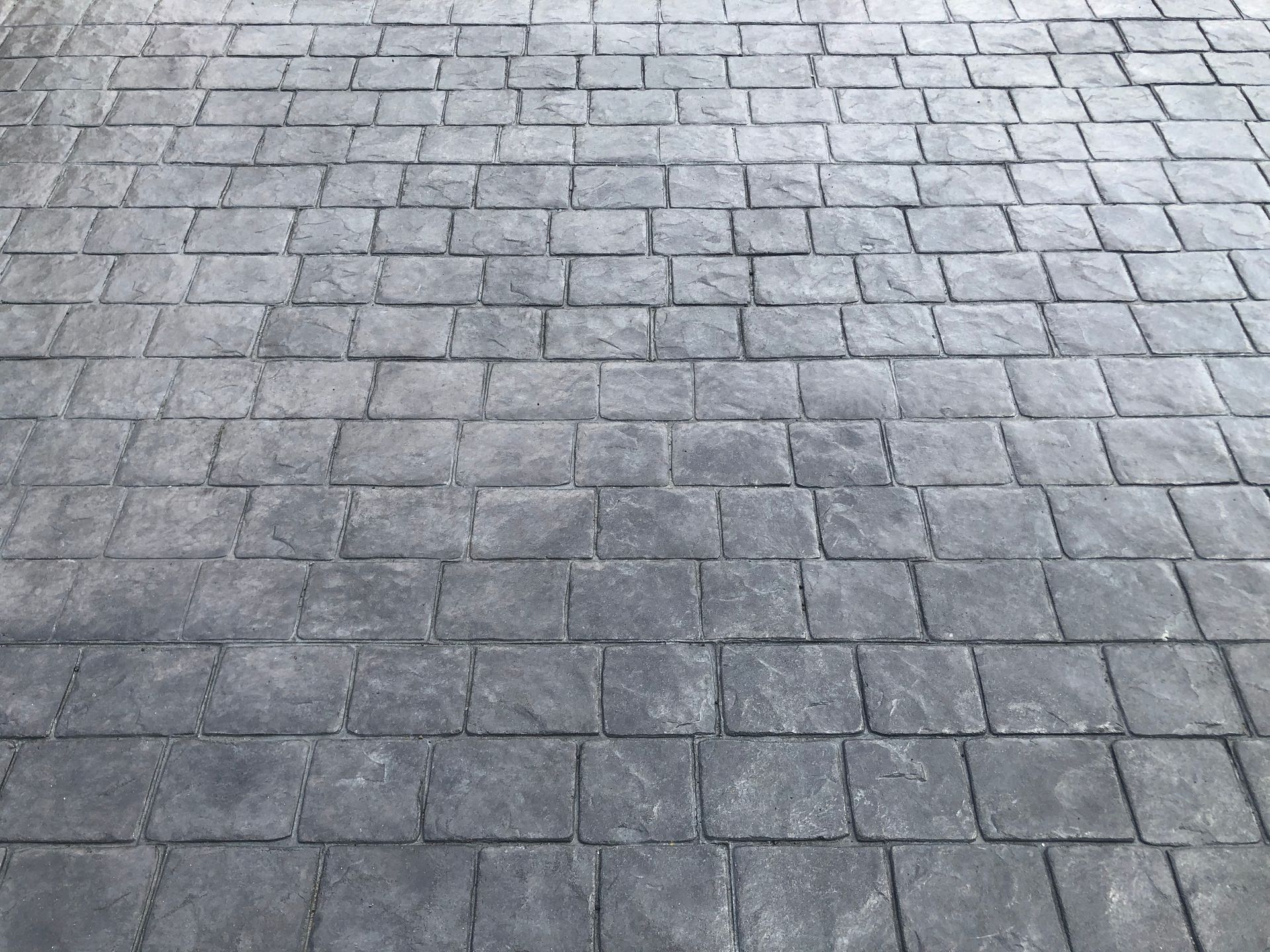

MASTERPAV Stamped Concrete is designed to produce patterned and colored concrete surfaces textured to resemble slate, stones and various other natural materials. Decorative concrete today is not only affordable but also offers durability and aesthetic values.

The system uses a dry-shake color hardener, color releaser, sealer and various stamping moulds and motifs. It is stamped to the surface of freshly poured concrete with a minimum strength of 25 MPa and thickness of ± 100 mm.

  • BENEFITS

    Durable

    Cost effective

    Improve surface finishing

    Improve floor aesthetics

    Wide range of colors


  • SYSTEM INFORMATION


    Packaging          :   25 kg per bag (M300)

                                          10 kg per pail (R696)

                                          10 litre & 20 litre per pail  (CI16)

                                          1 litre, 5 litre & 20 litre per pail (Acrylic Sealer)


    Consumption  :    3.5 - 4 kg per sq mtr (M300)

                                           0.15 - 0.2 kg per sq mtr (R696)

                                           4 sq mtr per litre (Acrylic Sealer)


  • INSTRUCTION FOR USE


    SURFACE PREPARATION

    Prepare and lay the fresh concrete as per requirements. Note that the concrete must be a minimum of G25 or compressive strength of 25 N/mm².


    After the concrete has been screeded, consolidated and further level by bull float. Ensure that any free water present has evaporated or removed in order to proceed to application.


    APPLICATION - M300

    Dry shake the Color Hardener evenly over the surface. The first application of the color hardener should use about 2/3 of the total amount needed. The dry shake materials will absorb some moisture from the freshly prepared concrete and should then be thoroughly floated into the surface, preferably by a bull float. Immediately after this the remainder of the specified amount of the Color Hardener should be distributed evenly over the surface at right angles to be previous application. This should be thoroughly floated and make sure that an uniform colors is obtained. Final trowelling is best done by hand.


    APPLICATION - R696

    After 30 minutes (Periodical checking of the condition and development of the concrete will determine the correct time frame for each stage and sequence of application), spread the R696 evenly onto the smooth trowelled surface. Spread and brush some amount of R696 onto the mould surface as well. Arrange the mould position and put it onto the smooth trowelled surface. Use the tamper to apply force evenly onto the surface. Repeat this steps for each mould to apply onto the surface.


    WASHING - CI16

    After 3 - 7 days of curing, use MASTERPAV CI16 to wash away all the excessive R696. This is to expose the 2 tones effect of the floor. This is also important to prevent any dust to stick on the stamped surface, which it will affect the bonding of sealer and the floor.


    SEALING

    After the floor is dried, apply MASTERPAV Acrylic Sealer for a high gloss, gloss, semi-gloss or matte finishing. Application of MASTERPAV Primer Sealer AS20 is highly recommended before the application of 2nd coat Acrylic Sealer.


  • REFER TO PRODUCT

    -MASTERPAV M300 Color Hardener


    -MASTERPAV R696 Color Releaser


    -MASTERPAV CI16 Cleaner


    -MASTERPAV AS20 Acrylic Sealer Primer


    -MASTERPAV AS28 Gloss Acrylic Sealer


    -MASTERPAV AS23 Matte Acrylic Sealer


    -MASTERPAV AS40 Heavy Duty Acrylic Sealer


    -MASTERPAV AS3.0 Concrete Sealer Anti-Slip


    -MASTERPAV WB5.0 Water-Based Acrylic Sealer


    -MASTERPAV AS26 Semi Gloss Acrylic Sealer


    -MASTERPAV AS30 High Gloss Acrylic Sealer


    -MASTERPAV Stamping Mould


    -Concreting Tools
