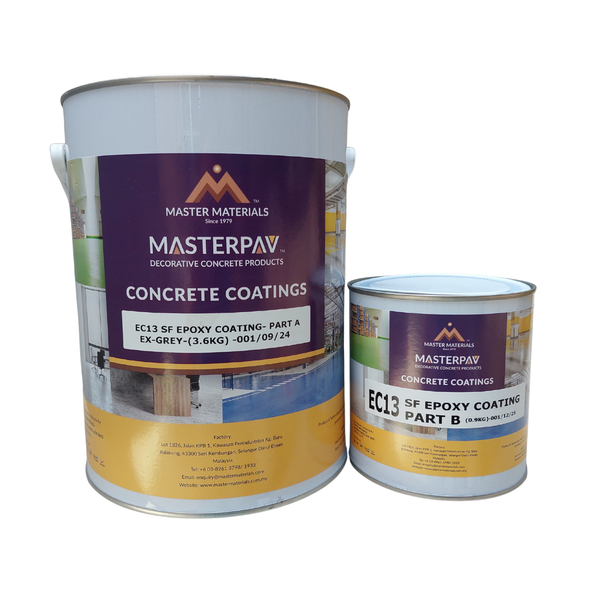

MASTERPAV EC13

SF Epoxy Coating


MASTERPAV EC13 SF is a two-component, solvent-free epoxy coating formulated for medium to heavy-duty industrial flooring. With its low-viscosity pigmented composition, EC13 is designed to be used as a topcoat over primed concrete surfaces, offering a durable, seamless, and chemical-resistant finish.

When combined with non-slip aggregates, EC13 can be applied to create textured, anti-slip flooring suitable for safety-critical environments such as factories, processing areas, or warehouses. It is ideal for interior concrete surfaces requiring long-term resistance to mechanical and chemical wear.

  • BENEFITS

    • Solvent-free formula for safer, high-performance indoor use
    • Medium to heavy-duty durability for high traffic areas
    • Compatible with anti-slip aggregates for textured surfaces
    • Seamless, hygienic, and pigmented finish
    • High resistance to abrasion and chemical exposure
    • Easy to clean and maintain
  • RECOMMENDED APPLICATION

    • Exhibition hall & showroom
    • Hotel Lobbies & entryways
    • Residential & commercial floor
    • Offices
    • Restaurants
    • Garage floors

  • PRODUCT INFORMATION

    THEORITICAL COVERAGE

    2.5 kg/m2


    PACKAGING

    Available in 4 & 20kg set

     4kg set (3kg Part A: 1kg Part B) + 100g MASTERPAV Metallic (approx. 1.6m2)


    20kg set (15kg Part A: 5kg Part B) + 500g MASTERPAV Metallic (approx. 8m2)


  • INSTRUCTION FOR USE

    1. Prepared Concrete Substrate
    2. 0.3 kg/m2 MASTERPAV EC 10
    3. 2.5 kg/m2 MASTERPAV EC 19

    SURFACE PREPARATION

    ·      The concrete surface to receive the MASTERPAV EC19 Metallic Epoxy Coating shall be subjected to mechanical grinding to achieve a concrete surface profile (CSP) 1 – 3 as recommended by ICRI.

    ·      The concrete surface shall be thoroughly clean and free from any debris or dust by subjecting to high-pressure cleaning or vacuum machine.

    ·   It is recommended to conduct concrete moisture test before application of MASTERPAV EC19 Metallic Epoxy Coating. Concrete substrate shall have moisture content of maximum 4%. For concrete substrate with moisture content higher than 4%, a moisture barrier is recommended.

    ·   All cracks are to be rectify before actual application.





    PRIMER

    ·      Pour the entire content of Part B into Part A of MASTERPAV EC10.

    ·      Mechanically mix the mixture using low power mixer until homogeneous.

    ·      Apply the mixed material using suitable roller and allow it to dry overnight.



    TOPCOAT

    ·   The previously applied primer should be cured, dry to the touch, and no longer tacky.

    ·   Light sanding the surface (promotes good bond between coats), follows by vacuuming.

    ·   Wipe clean the dust using a microfiber wipe with a suitable solvent (eg: MASTERPAV Thinner 101)

    ·      Pour the entire content of Part B into Part A of MASTERPAV EC19 Metallic Epoxy Coating.

    ·      Mechanically mix the mixture using low power mixer until homogeneous.

    ·      Divide the mixed epoxy into 2 cups and add color to each one (Cup 1: Base color, Cup 2: Highlight color). Cup 1 should be the main base color and have most of the epoxy, while Cup 2 should be your highlight color and have less epoxy.

    ·      For every 4kg (A+B) epoxy resin, 1 pack of MASTERPAV Metallic pigments (100g) is recommended.

    ·      Pour out the main base color which have most of the epoxy and spread it using 5mm notched floor squeegee.

    ·      Use microfiber roller (deshedded) to blend the base and highlight epoxy to customize the design.

    ·      The floor will keep self-leveling for hours. Allow the floor to cure 24 hours before you allow anyone step on it. (Pro tips: Spray 91% isopropyl alcohol 15 minutes after application to get rid of air bubbles in the epoxy surface)

    ·   The MASTERPAV EC19 Metallic Epoxy Coating need 2.5kg for every m2 of the project.





    CAUTION! DO NOT LEAVE MIXED PRODUCT IN A BUCKET. THIS WILL CAUSE A FASTER CHEMICAL REACTION & THE EPOXY WILL THICKEN FASTER THAN IT SHOULD. THIS WILL COMPROMISE THE WORKING TIME. REFER TO POT LIFE DATA BEFORE USE.

Color Chart

MISTY GREY

EX-GREY

BUTTERMILK

BRIGHT BLUE

FRESH BLUE

WHITE

      DARK GREEN

       EVERGREEN
